A high specification Diesel Welder Generator for site welding work.
Features:
Patented high frequency chopper control, 210amp DC welding output, Stepless electronic welding control, Arc control for cellulose electrodes, Electric start engine, Long run fuel tank (20 hours), Super silenced canopy (lockable) and EEC noise compliant.
Technical Information:

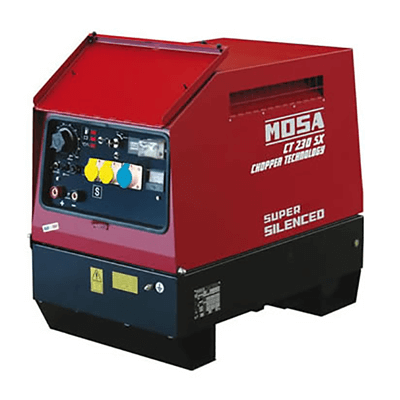

- Based On: Mosa CT230 YSX/EL Welder Generator
- Current Range (Continuous): 20A - 210A
- Open Circuit Voltage: 65V
- Duty Cycle (Intermittent): 210A @ 35%, 180A @ 60%, 140A @ 100%
- Electrode Diameters: 2mm - 5mm
- AC Generation - Single Phase: 5kVA 230V @ 100% Duty Cycle
- AC Generation - Single Phase C.T.E.: 2 x 2.5kVA 110V @ 100% Duty Cycle
- Engine Type: Yanmar L 100 AE Diesel
- Engine Output: 6.5kW
- Engine Speed: 3000rpm
- Fuel Consumption: 1.15l/hr
- Fuel Tank Capacity: 20 Hours
- Running Time @ 60% Load: 6.5kW
- Protection: IP 23
- Noise Level: 93LWA 68dB(A)
- Weight (Without Wheel Kit): 247kg
- Dimensions: 1050mm x 650mm x 920mm
